memory Portable 2.4G / 5G Research Platform

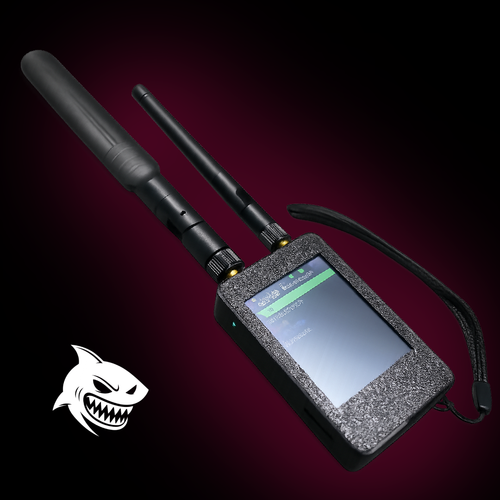

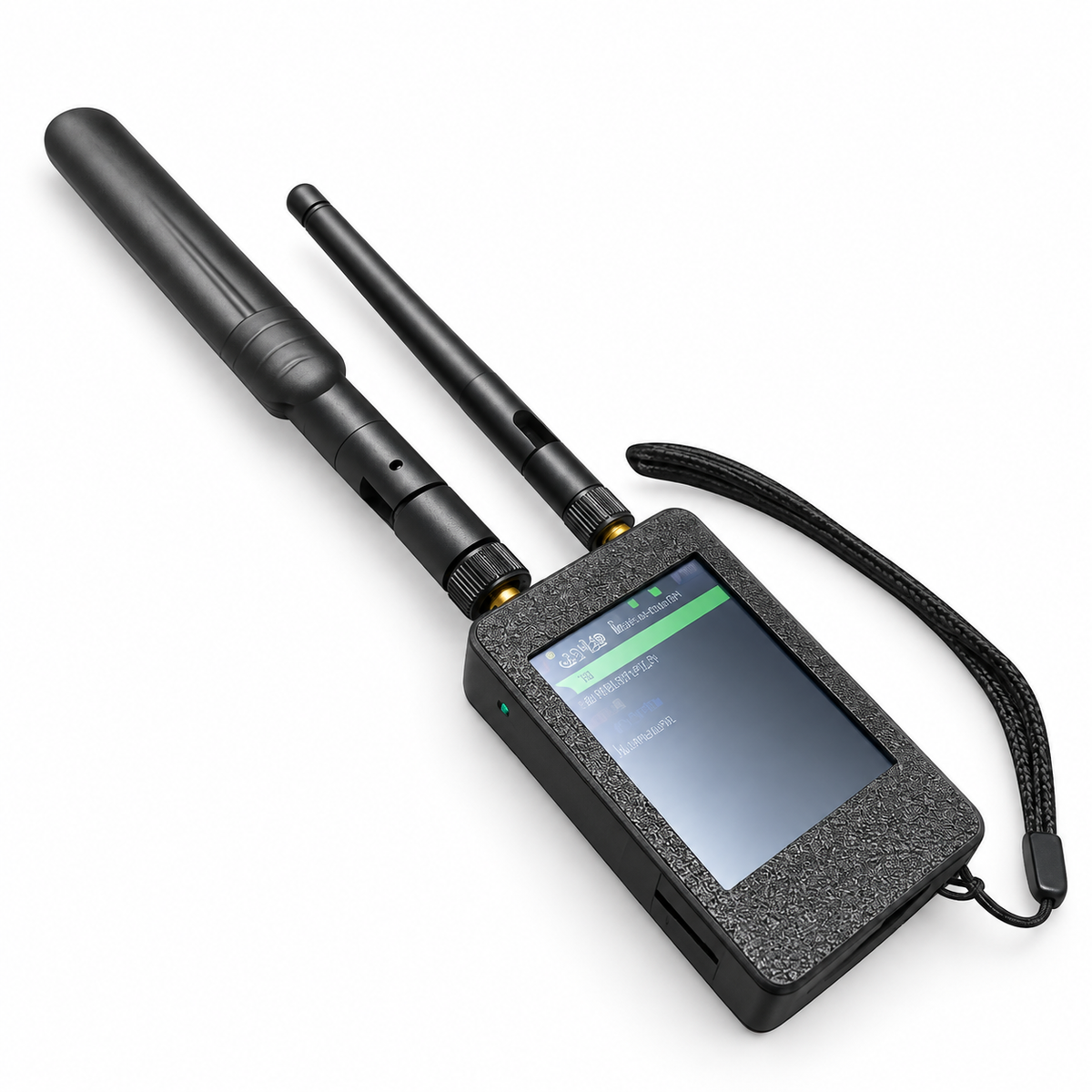

M5Shark Marauder v8 2.4G / 5G

Compact ESP32-C5 Marauder V8-Compatible Research & Development Platform

The M5Shark Marauder v8 2.4G / 5G is a compact portable development platform based on the ESP32-C5. It is designed with a smaller body, 2.4-inch resistive touchscreen, built-in 2000mAh battery, GNSS support, USB-C power, and dual-band antenna support for authorized learning, development, and security research workflows.

ESP32-C5 Core Marauder V8 Compatible 2.4G / 5G Antenna 2.4" Touch Display 2000mAh Battery USB-C 5V / 1A GNSS GPS + BD PETG Black Shell

⚡ Multi-Protocol: ESP32-C5, GNSS, 2.4G / 5G antenna, Marauder V8 firmware compatible

🧳 Portable Kit: USB-C, TF/microSD slot, antennas, lanyard, compact carry design

🛡️ For Learning: authorized security testing, development, and research only

Important Use Notice: This device is intended only for authorized security testing, learning, development, and lawful research. Users must comply with all local laws and must not use this product for unauthorized network testing or illegal activity.
developer_board ESP32-C5
wifi 2.4G / 5G
battery_charging_full 2000mAh
usb USB-C
gps_fixed GNSS
touch_app Touch Control

info Product Overview

Portable ESP32-C5 Platform

Built around ESP32-C5 for compact wireless development, authorized testing, research, and learning workflows.

Marauder V8 Compatible

Compatible with mainstream Marauder V8 firmware so users can develop and test in a familiar software environment.

Compact Carry Design

Smaller portable design with reduced footprint, making it easier to carry for lab, field kit, or learning setups.


  • • The M5Shark Marauder v8 2.4G / 5G is a portable integrated development platform based on the ESP32-C5.
  • • Compatible with mainstream Marauder V8 firmware for a familiar software environment.
  • • Compact size of about 80 × 50 × 18 mm for portable carry.
  • • Includes a 2.4-inch resistive touchscreen for direct menu navigation and control.
  • • Built with an integrated 2000mAh / 7.4Wh lithium battery.
  • • Includes GNSS support and a dual-band 2.4G / 5G antenna.
  • • Designed for authorized security testing, development, learning, and research only.

verified_user Authorized Learning Scope

Permitted Context Authorized security testing, firmware learning, development, research, and controlled educational use.
Restricted Uses No unauthorized network testing, unlawful access, disruption, interference, or misuse against systems you do not own or have permission to test.
User Responsibility Users must comply with all local laws, rules, and regulations before purchasing, importing, carrying, or using the device.
Recommended Use Use only in legal lab setups, personal development environments, authorized research, and approved testing scenarios.

Learning Notice:
M5Shark Marauder v8 2.4G / 5G is a professional open platform and testing tool for lawful learning and development. It should only be used in authorized environments. Unauthorized network testing may violate applicable laws and regulations.

hub Key Features

ESP32-C5 Core

Built around the ESP32-C5 platform for compact wireless development and research workflows.

2.4G / 5G Antenna Support

Includes dual-band antenna support for authorized research, learning, and development environments.

2.4-Inch Touch Display

Uses a 2.4-inch resistive touchscreen for menu control and direct on-device navigation.

Built-In 2000mAh Battery

Integrated lithium battery makes the device ready to use without external battery setup.

GNSS Support

Equipped with ATGM336H-5N31 GNSS module supporting GPS + BD positioning functionality.

USB-C Power

Supports USB Type-C input with 5V / 1A power for charging and daily device use.

Efficient DC-DC Power Design

Uses a high-efficiency DC-DC buck converter to reduce heat and improve battery efficiency.

Charging Temperature Protection

Dedicated charging-control IC stops charging outside the 0–60°C operating range for safer charging behavior.

TF Card ESD Protection

Additional electrostatic-discharge protection has been added to the TF card slot.

settings Technical Specifications

Product Name M5Shark Marauder v8 2.4G / 5G
Product Type Portable integrated ESP32-C5 development platform
Core Module ESP32-C5
Firmware Compatibility Compatible with mainstream Marauder V8 firmware
Wireless Antenna Dual-band 2.4G / 5G antenna included
GNSS Module ATGM336H-5N31, GPS + BD
Display 2.4-inch resistive touchscreen
Battery Integrated 2000mAh / 7.4Wh lithium battery
Power Input USB Type-C, 5V / 1A
Dimensions Approx. 80 × 50 × 18 mm
Weight Approx. 110 g

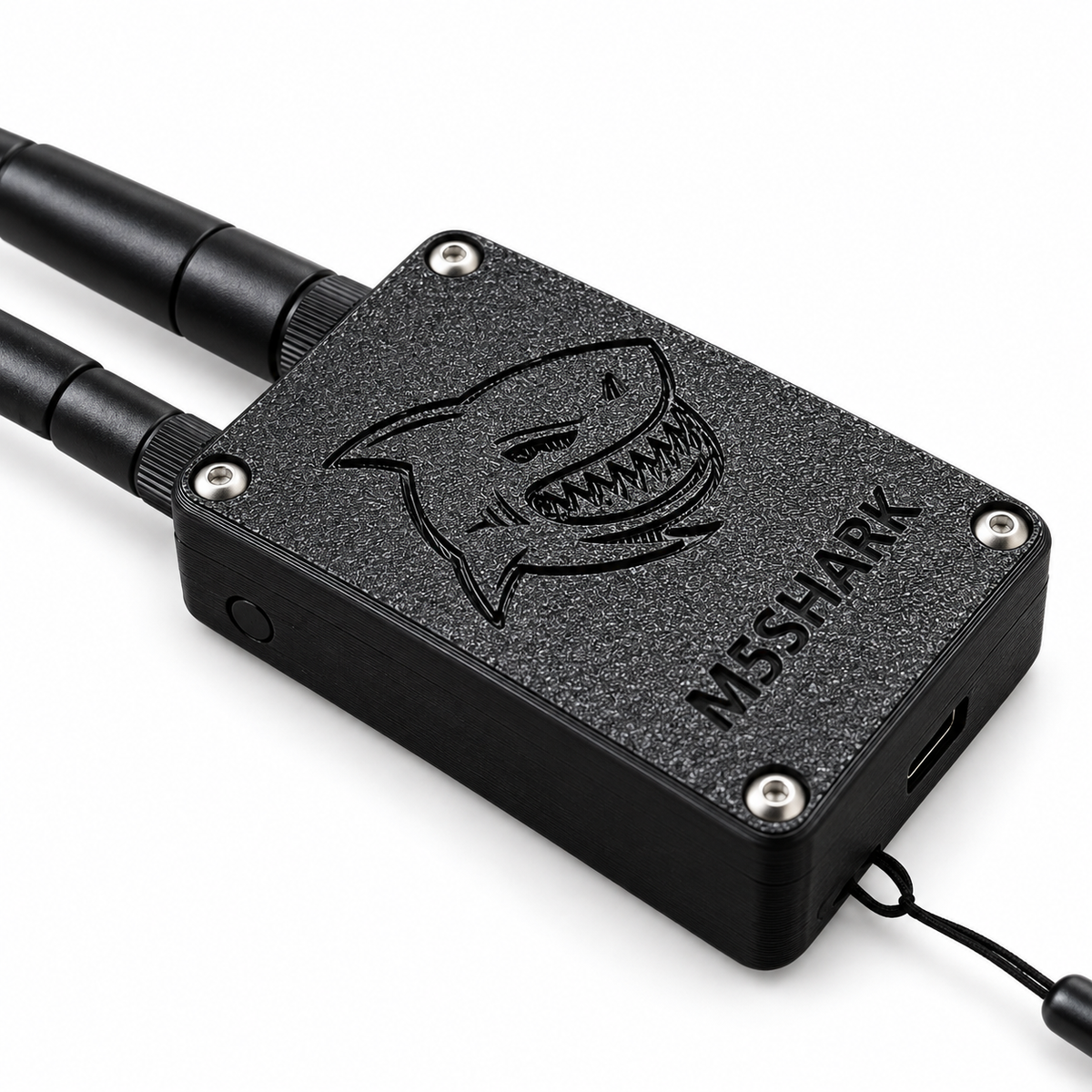

Material & Color 3D printed / PETG / Black
Indicators 3 indicators: GNSS / Status / Charging
Power Switch Push button
Portability EVA storage box + lanyard

touch_app Controls & Indicator LEDs

Power Control

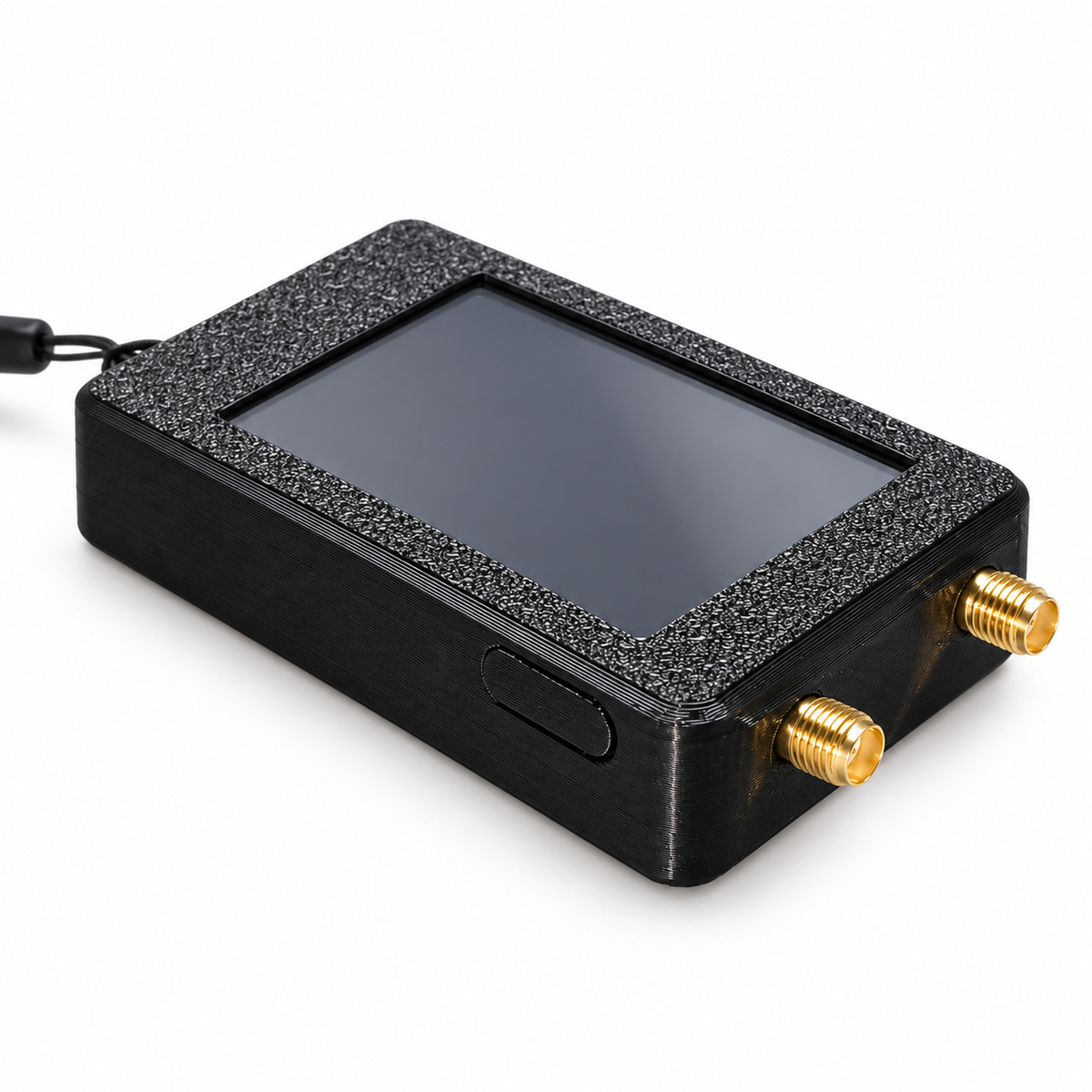

The power button is located on the right side of the device. Press once to power on and press twice to power off.

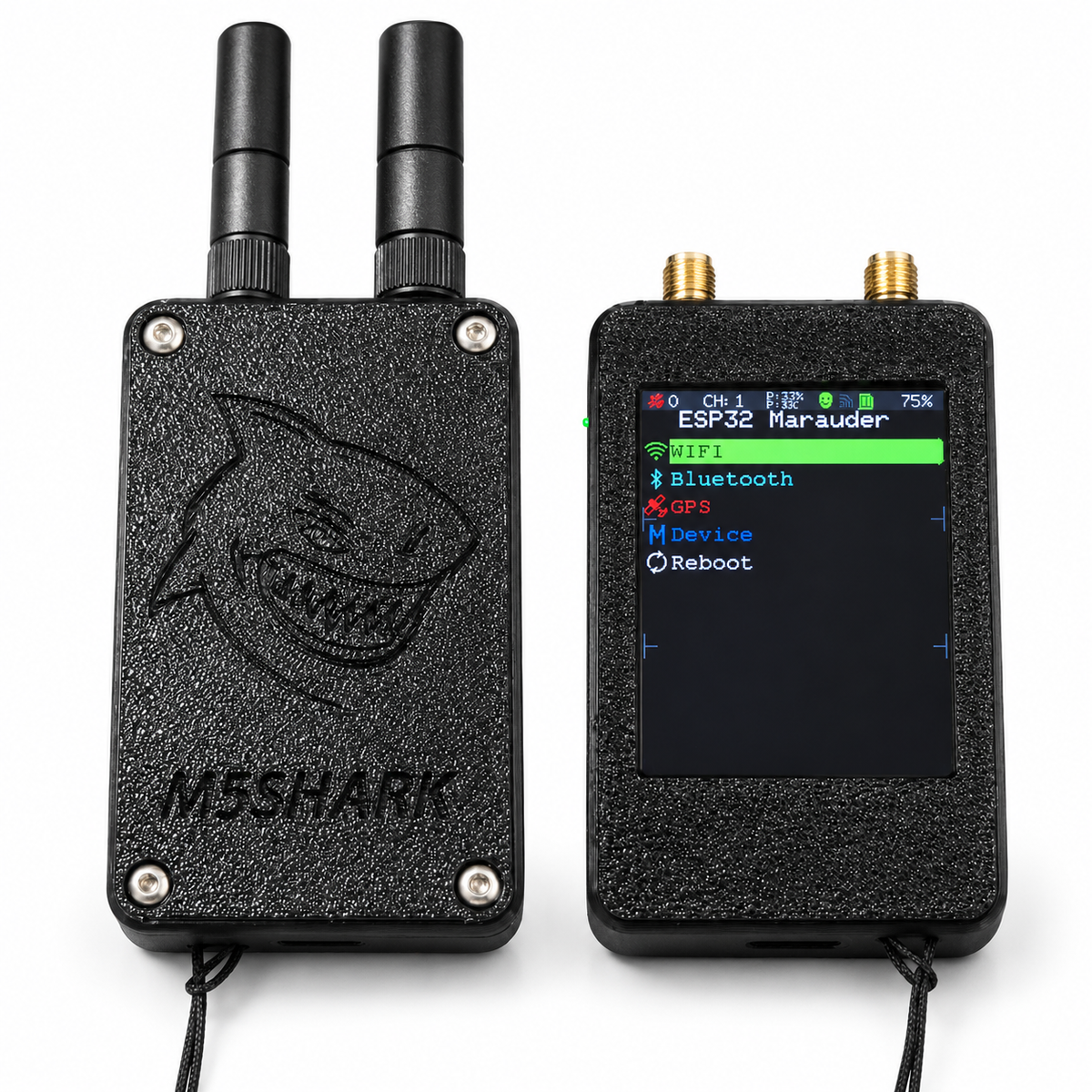

Touchscreen Menu Control

The display uses three touch areas: upper area for previous item, middle area for confirm, and lower area for next item.

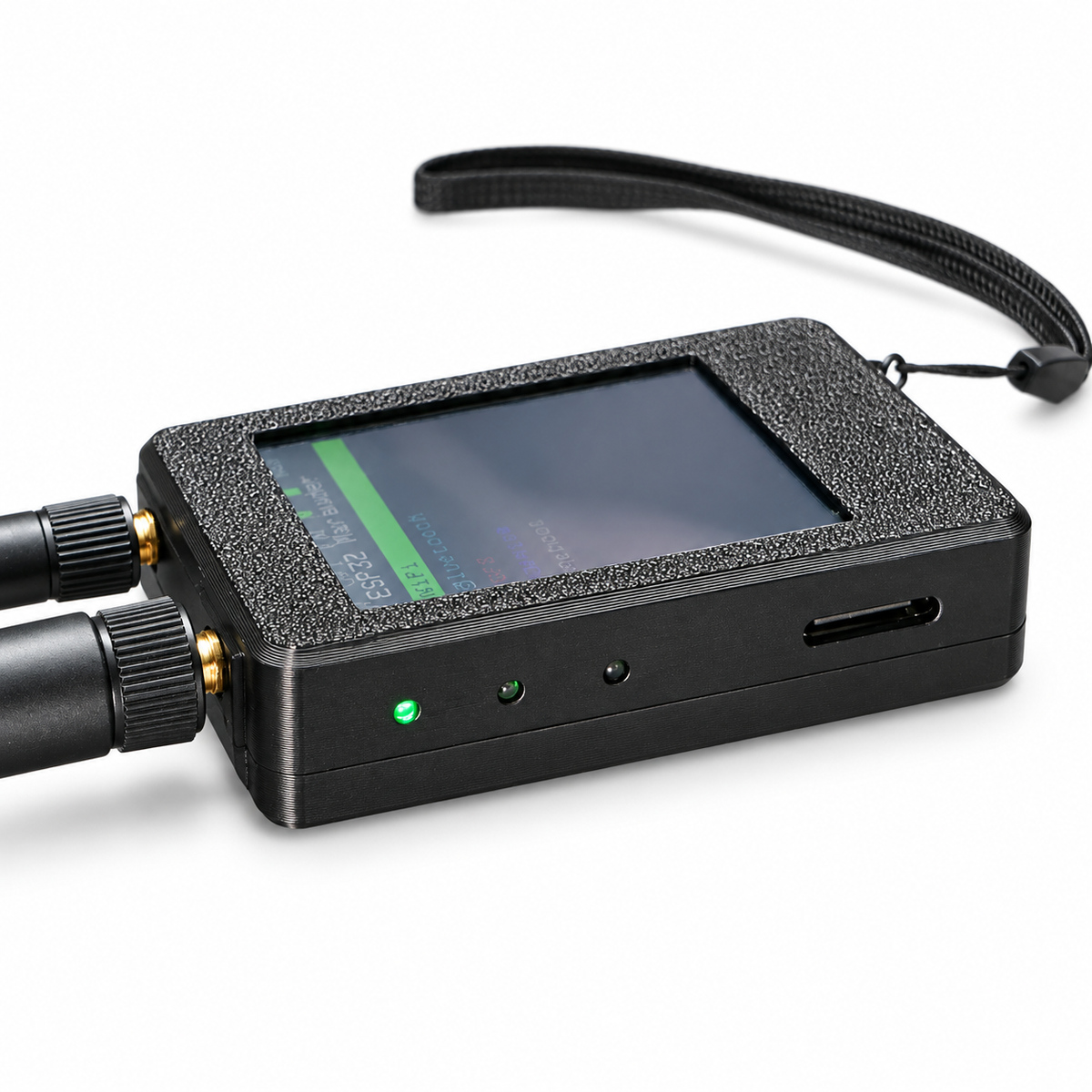

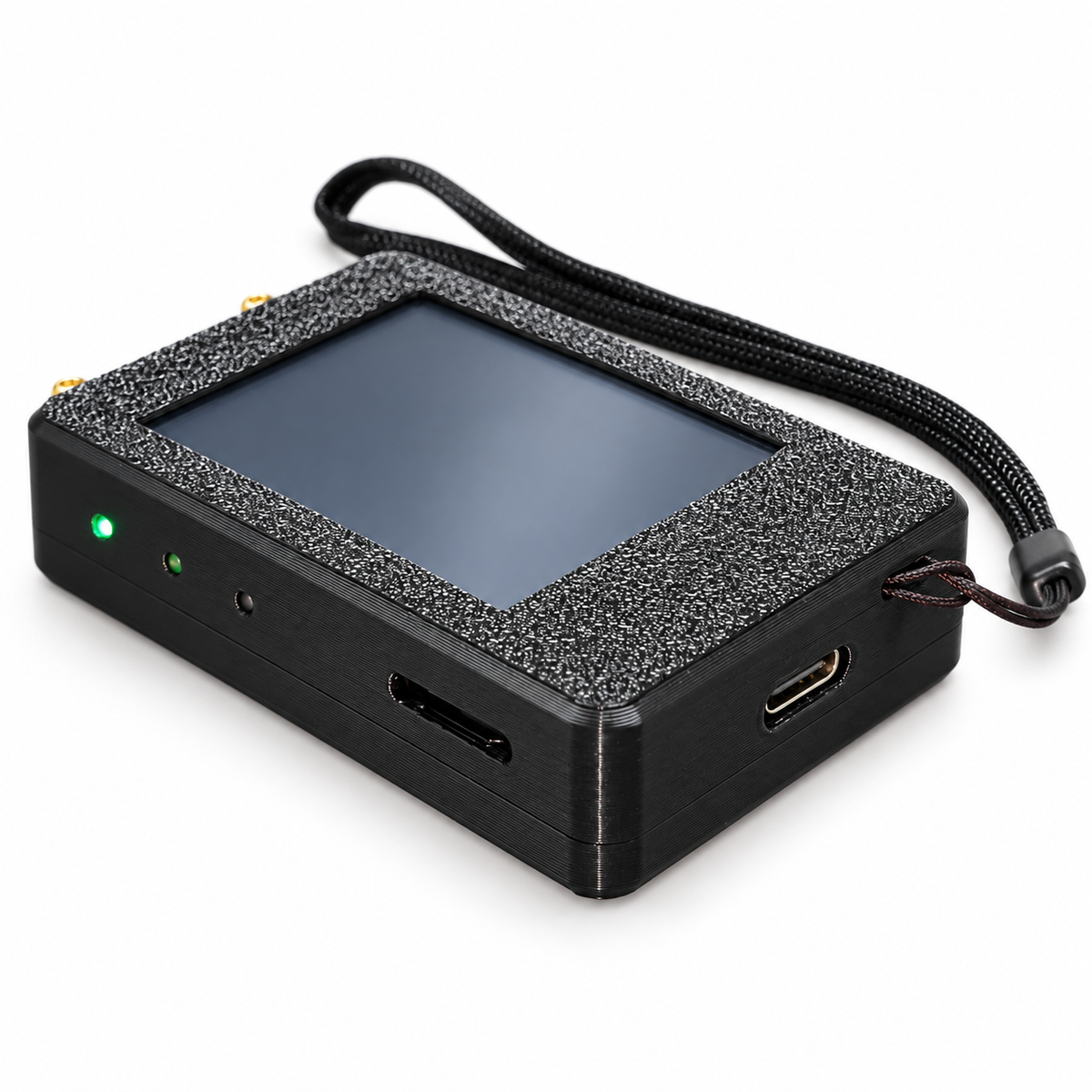

System Indicator

Green LED indicates the system power state and may flash slightly during touch operations or normal operation.

Charging Indicator

Red LED indicates charging status. The system supports charging protection and current limiting up to 1A.

Positioning Indicator

Blue LED is used for positioning status. Flashing indicates successful positioning.

Small On-Screen Buttons

Some functions include small on-screen buttons. Careful touch input may be needed for better control accuracy.


Control Note: This device uses a resistive touchscreen. For very small on-screen buttons, precise touch input may be needed.

compare_arrows M5Shark Marauder v8 2.4G / 5G Highlights

Item Standard Marauder V8 Style M5Shark Marauder v8 2.4G / 5G
Core Module ESP32-C5 ESP32-C5
GNSS Module ATGM336H ATGM336H-5N31 GPS + BD
GNSS Backup Battery No Yes
Indicators 4 indicators 3 indicators: GNSS, Status, Charging
Charging Temperature Protection No Yes
Dimensions Approx. 100 × 73 × 30 mm Approx. 80 × 50 × 18 mm
Battery External 18650 battery Integrated 2000mAh battery
Display 2.8-inch + resistive touch 2.4-inch + resistive touch
Weight Unknown Approx. 110g
Material & Color 3D printed / Black 3D printed / PETG / Black
Power Switch Toggle switch Push button
Protection & Portability MagSafe mount EVA storage box + lanyard

inventory_2 What This Kit Includes

  • • 1 × M5Shark Marauder v8 2.4G / 5G device
  • • 1 × GNSS antenna
  • • 1 × Dual-band 2.4G / 5G antenna
  • • 1 × Lanyard pre-installed
  • • Integrated 2000mAh / 7.4Wh lithium battery
  • • Built-in 2.4-inch resistive touchscreen
  • • USB Type-C 5V / 1A charging input
  • • Compact 3D printed PETG black enclosure

Package Note: Package contents, shell finish, accessories, hardware revision, and minor assembly details may vary depending on production batch or selected version.

warning Before Purchase & Usage Notice

Important Before Purchase:
1. The device is hand-assembled and may have minor cosmetic imperfections that do not affect functionality.

2. A functional test video may be recorded before shipment to confirm proper hardware operation.

3. Due to the nature of the product, returns or exchanges are not accepted unless a confirmed quality issue is found.

4. This device is a professional open platform and testing tool intended only for authorized security testing, learning, and research. Unauthorized network testing may violate applicable laws and regulations. Users must comply with all local laws before use.
