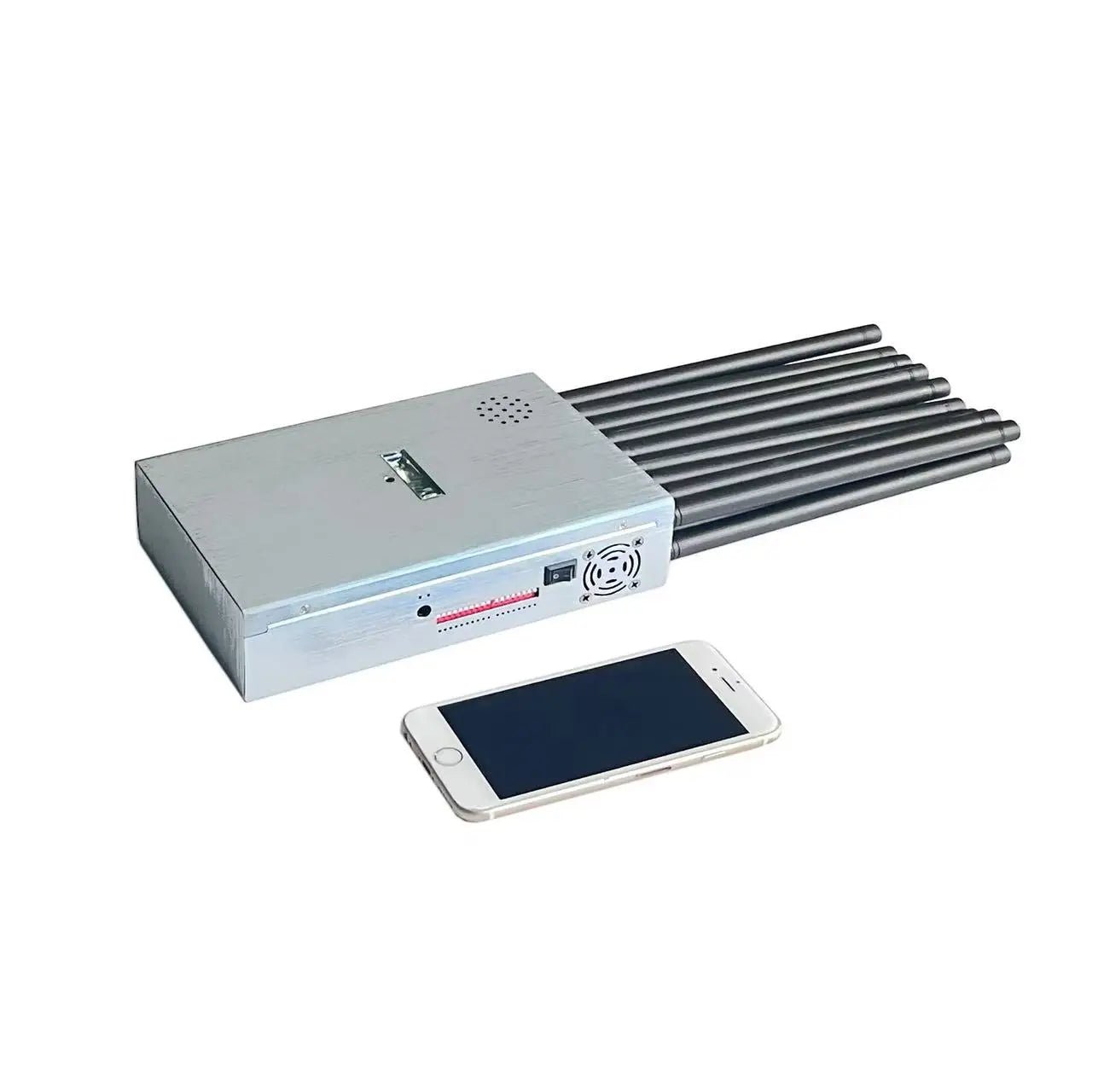

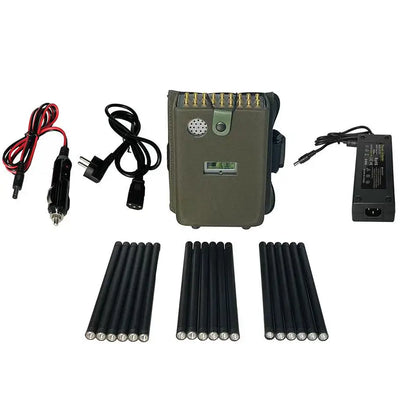

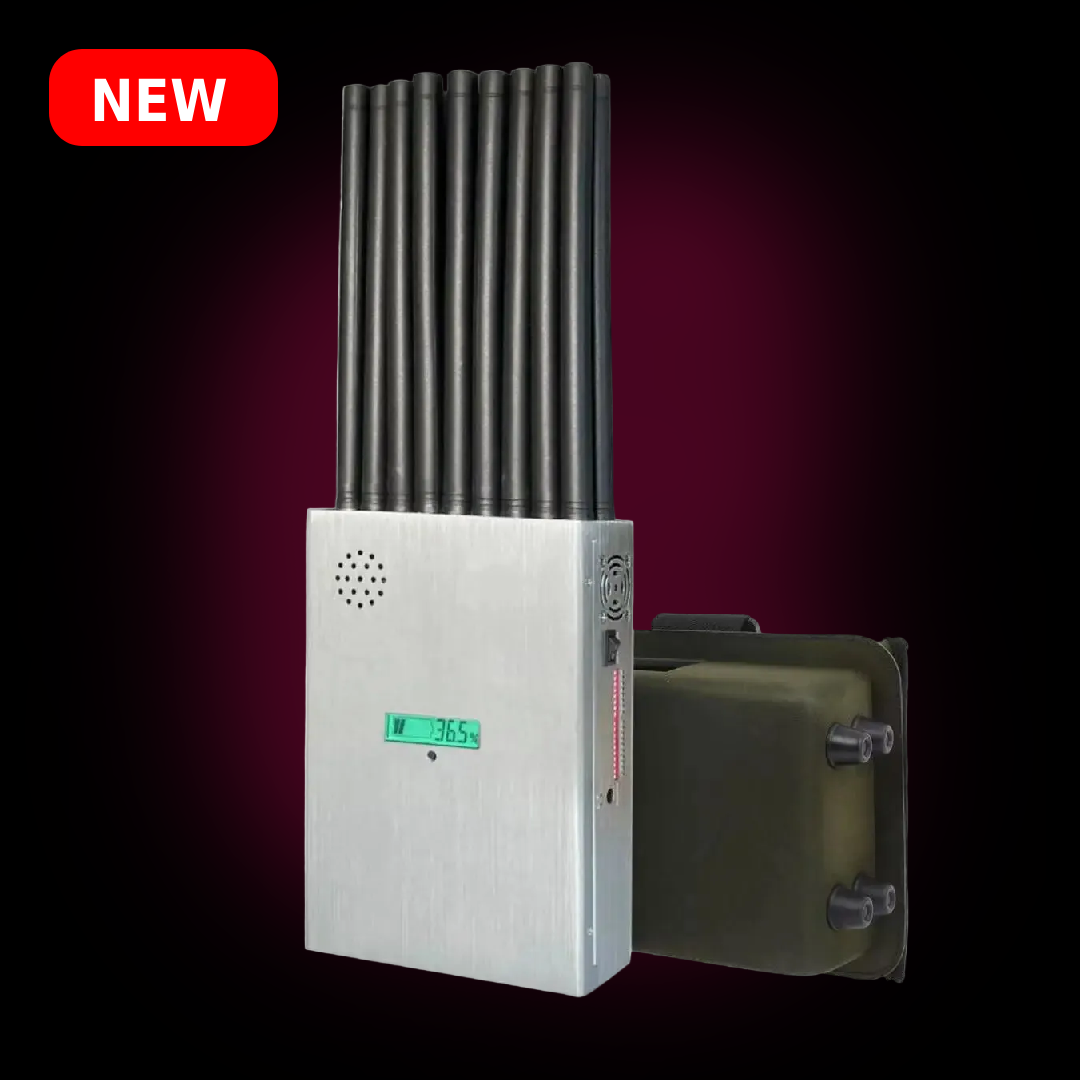

Universal Signal RF - 18 Antennas Phone GSM 2G 3G 4G 5G WIFI GPS Lojack
Universal Signal RF - 18 Antennas Phone GSM 2G 3G 4G 5G WIFI GPS Lojack
Couldn't load pickup availability
-92%
⚡ Important Operational Note
Kindly reminder: For handheld signal units, customers are advised not to use them while plugged in for a long time. Please fully charge the device and unplug the power before use. The working time on a full charge is about 1‑2 hours. Critical: Please install all antennas correctly before powering on the device.
D18 PLUS | Elite Desktop RF Reference Platform
The D18 Plus is a high-performance stationary hardware platform engineered for professional spectrum analysis. Featuring a reinforced high-grade aluminum chassis and an 18-port modular layout, this unit is designed for continuous desktop operation in authorized laboratory and compliance review environments.
Full Spectrum Frequency & Power Output
| Frequency Channel Band | Range (MHz/GHz) | Output Power |
|---|---|---|
| 5G Cellular / Sub-6GHz | 617-685MHz / 3300-3800MHz | 3.0W |
| 4G LTE / 3G / GSM | 700 / 850 / 1700 / 1900 / 2100 / 2600MHz | 3.0W |
| Wi-Fi 6E / 5.8G / 5.2G / 2.4G | 2400-2500MHz / 5100-6000MHz | 2.0W - 3.0W |
| GPS / Galileo / Glonass | L1, L2, L3, L4, L5 (Full Band) | 3.0W |
| VHF / UHF / RC / Lojack | 135-175 / 315 / 433 / 868 / 173MHz | 3.0W |
Power Management
- Input: AC 110V–240V (Universal Compatibility)
- Supply: External DC 12V / 15A High-Amperage Adapter
- Restriction: Stationary desktop use only. 52W draw is incompatible with car lighter sockets.
Physical Architecture
- Dimensions: 450mm x 238mm x 60mm
- Weight: 5.0KG (Unit) / 6.5KG (Full Export Kit)
- Cooling: 3x High-RPM internal fans with active longitudinal airflow.
Professional Hardware Features
- 18 Independent Hardware Adjustment Knobs
- SMA Female Threaded RF Interfaces
- 280mm Extended High-Gain Omni Antennas
- Individual LED "Channel Active" Status Lights
- Industrial Grade Continuous Duty Cycle
- Tuned Antenna Labels for Precise Installation
⚠️ Professional Regulatory Notice
This equipment is presented for informational, customs reference, and sourcing purposes only. Deployment of RF interference hardware is strictly governed by international and local regulations (FCC, CE, OFCOM).
This unit is intended for authorized laboratory research, professional RF diagnostic testing, and educational compliance review. It is the sole responsibility of the purchaser to ensure compliance with all local laws and national import/export controls. The manufacturer and seller assume no liability for unauthorized or illegal use.
🧠 Microcontroller: ESP32-PICO-V3-02 (Wi-Fi + BLE)
📺 Display: 1.14" IPS LCD (135×240)
🔋 Battery: 200mAh Li-Po, rechargeable via USB-C
⚙️ Port: USB Type-C (5V input)
💾 Storage: Flash memory with script support
📡 Connectivity: Wi-Fi 802.11 b/g/n + Bluetooth 4.2
🧩 Expansion: Grove port, GPIO headers
📏 Dimensions: 48.2 × 25.5 × 13.7 mm
T6Shark Plus
Both theCC1101chip and the antenna are designed to operate at frequencies in the 300-348 MHz, 387-464 MHz, and 779-928 MHz bands.
Ethical Hacking & Security Research
Wireless Security Analysis
Perform legal network scanning and penetration testing with ESP32's Wi-Fi/Bluetooth capabilities
Customizable Scripts
Develop security tools using Arduino IDE, MicroPython, or UIFlow for ethical hacking purposes
Portable Penetration Kit
Compact design for on-site security audits and vulnerability assessments
Sensor Integration
Use built-in sensors for environmental monitoring during security operations
